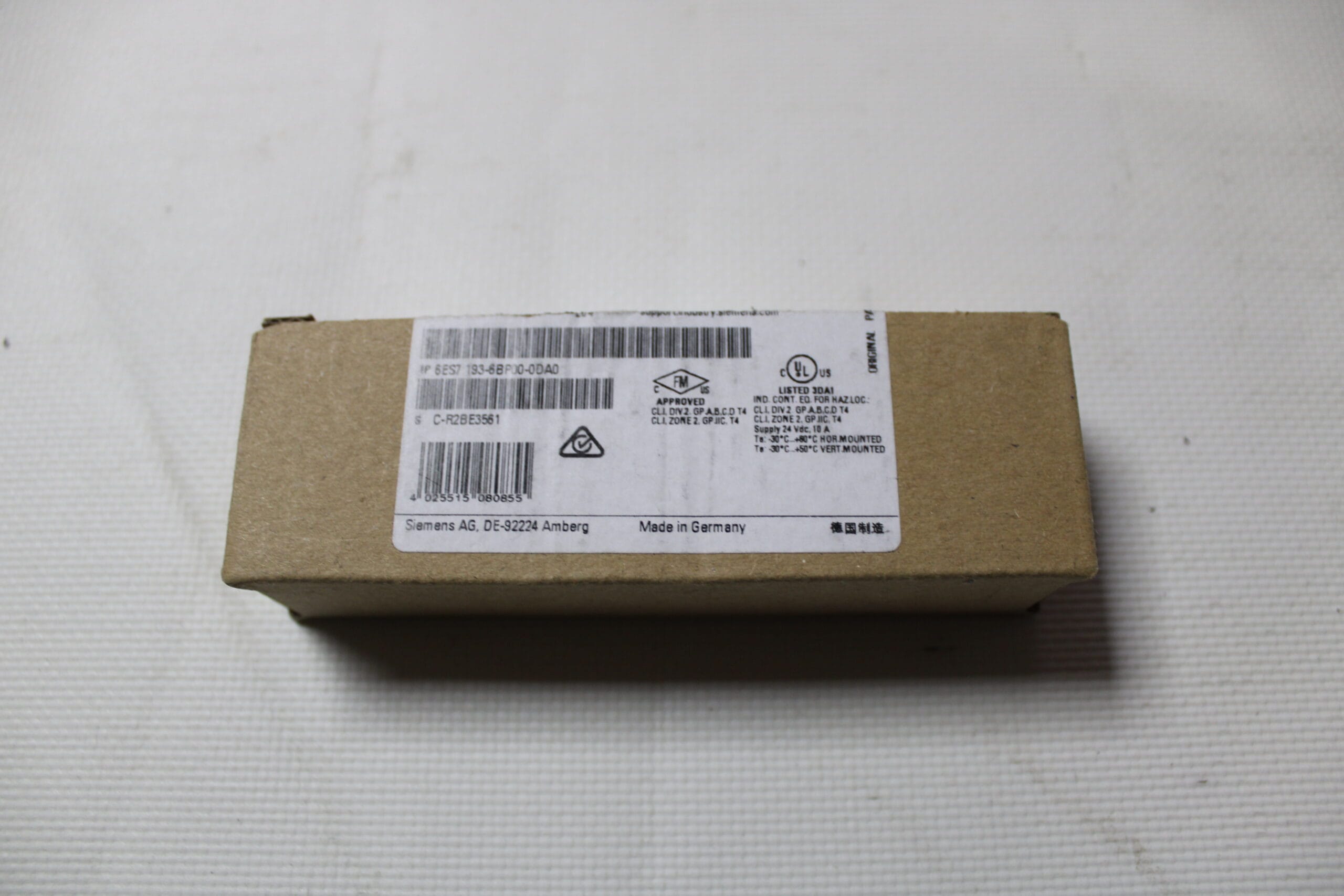

6ES7193-6BP00-0DA0 – SIEMENS

6ES7193-6BP00-0DA0
General information
Product type designation BU type A0
HW functional status From FS06
Supply voltage
Rated value (DC) 24 V
external protection for power supply lines Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping
characteristic
Mains filter
● integrated Yes
Current carrying capacity
For P1 and P2 bus, max. 10 A
For process terminals, max. 2 A
Hardware configuration
Formation of potential groups
● New potential group Yes
● Potential group continued from the left No
Slots
● Number of slots 1; Type A0
Potential separation
between the potential groups Yes
Isolation
Isolation tested with 707 V DC (type test)
Ambient conditions
Ambient temperature during operation
● horizontal installation, min. -30 °C
● horizontal installation, max. 60 °C
● vertical installation, min. -30 °C
● vertical installation, max. 50 °C
Altitude during operation relating to sea level
● Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Accessories
Color coding labels
● for process terminals CC00 to CC09
● for AUX terminals does not exist
● for add-on terminals does not exist
connection method
Terminals
● Terminal type Push-in terminal
● system-integrated shield connection Yes; Optional
● Conductor cross-section, min. 0.14 mm²; AWG 26
● Conductor cross-section, max. 2.5 mm²; AWG 14
● Number of process terminals to I/O module 16
● Number of terminals to AUX bus 0
● Number of add-on terminals 0
● Number of terminals with connection to P1 and P2 bus 2
Dimensions
Width 15 mm
Height 117 mm
Depth 35 mm
Weights
Weight, approx. 40 g
