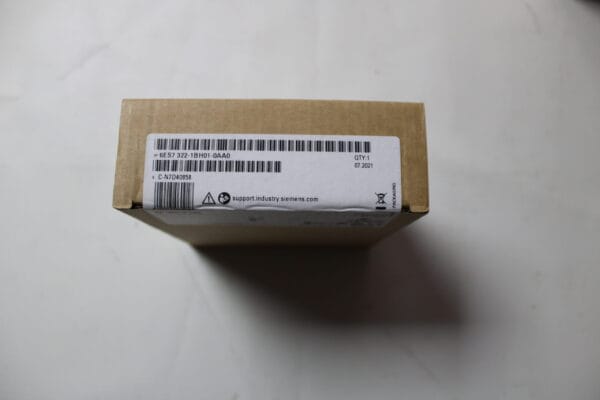

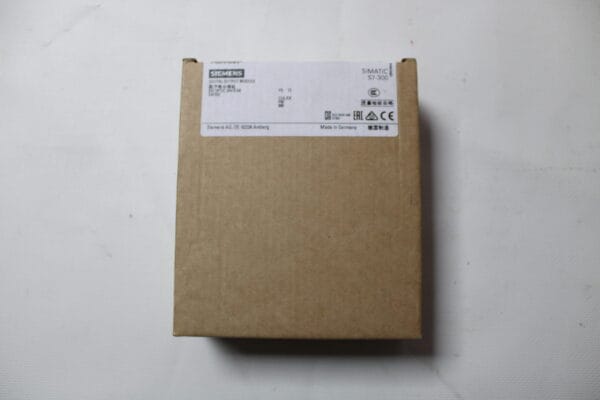

SIMATIC S7-300, Digital output SM 322, isolated, 16 DO, 24 V DC, 0.5A, 1x 20-pole, Total current 4 A/group (8 A/module) 6ES7 322-1BH01-0AA0
Açıklama
WARNING: For see product specifications click “SPECIFICATIONS”.
UYARI: Ürün özelliklerini görmek için “SPECITIFATIONS”a tıklayınız.
6ES7322-1BH01-0AA0 – SIEMENS
SIMATIC S7-300, Digital output SM 322, isolated, 16 DO, 24 V DC, 0.5A, 1x 20-
pole, Total current 4 A/group (8 A/module)
6ES7322-1BH01-0AA0 - SIEMENS
Supply voltage
Load voltage L+
● Rated value (DC) 24 V
● permissible range, lower limit (DC) 20.4 V
● permissible range, upper limit (DC) 28.8 V
Input current
from load voltage L+ (without load), max. 80 mA
from backplane bus 5 V DC, max. 80 mA
Power loss
Power loss, typ. 4.9 W
Digital outputs
Number of digital outputs 16
Short-circuit protection Yes; Electronic
● Response threshold, typ. 1 A
Limitation of inductive shutdown voltage to L+ (-53 V)
Controlling a digital input Yes
Switching capacity of the outputs
● on lamp load, max. 5 W
Load resistance range
● lower limit 48 Ω
● upper limit 4 kΩ
Output voltage
● for signal "1", min. L+ (-0.8 V)
Output current
● for signal "1" rated value 0.5 A
● for signal "1" permissible range for 0 to 40 °C, min. 5 mA
● for signal "1" permissible range for 0 to 40 °C, max. 0.6 A
● for signal "1" permissible range for 40 to 60 °C, min. 5 mA
● for signal "1" permissible range for 40 to 60 °C, max. 0.6 A
● for signal "1" minimum load current 5 mA
● for signal "0" residual current, max. 0.5 mA
Output delay with resistive load
● "0" to "1", max. 100 µs
● "1" to "0", max. 500 µs
Parallel switching of two outputs
● for uprating No
● for redundant control of a load Yes
Switching frequency
● with resistive load, max. 100 Hz
● with inductive load, max. 0.5 Hz
● with inductive load (acc. to IEC 60947-5-1, DC13), max. 0.5 Hz
● on lamp load, max. 10 Hz
Total current of the outputs (per group)
horizontal installation
— up to 40 °C, max. 4 A
— up to 60 °C, max. 3 A
vertical installation
— up to 40 °C, max. 2 A
Cable length
● shielded, max. 1 000 m
● unshielded, max. 600 m
Interrupts/diagnostics/status information
Alarms No
Diagnostics function No
Alarms
● Diagnostic alarm No
Diagnoses
● Wire-break No
● Short-circuit No
● Fuse blown No
● missing load voltage No
Diagnostics indication LED
● Rated load voltage PWR (green) No
● Fuse OK FSG (green) No
● Status indicator digital output (green) Yes
Potential separation
Potential separation digital outputs
● between the channels Yes
● between the channels, in groups of 8
● between the channels and backplane bus Yes; Optocoupler
Isolation
Isolation tested with 500 V DC
connection method
required front connector 20-pin
Dimensions
Width 40 mm
Height 125 mm
Depth 120 mm
Weights
Weight, approx. 190 g
