X20 CS 1030 – X20CS1030 – Automation Interface Module – B&R
In addition to the standard I/O, complex devices often need to be connected. The X20CS communication modules are intended precisely for cases like this. As normal X20 electronics modules, they can be placed anywhere on the remote backplane.
Açıklama
WARNING: For see product specifications click “SPECIFICATIONS”.
UYARI: Ürün özelliklerini görmek için “SPECITIFATIONS”a tıklayınız.

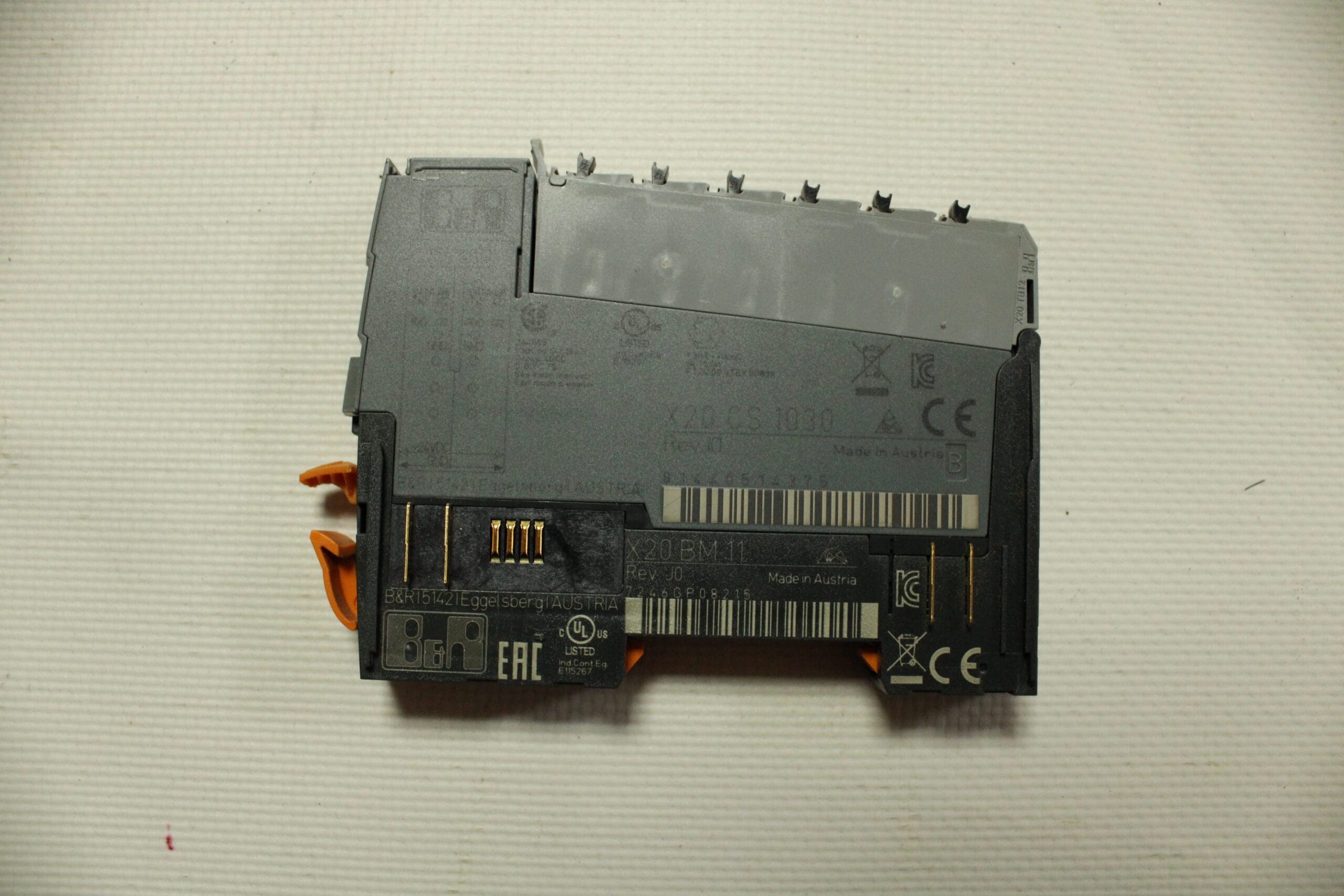

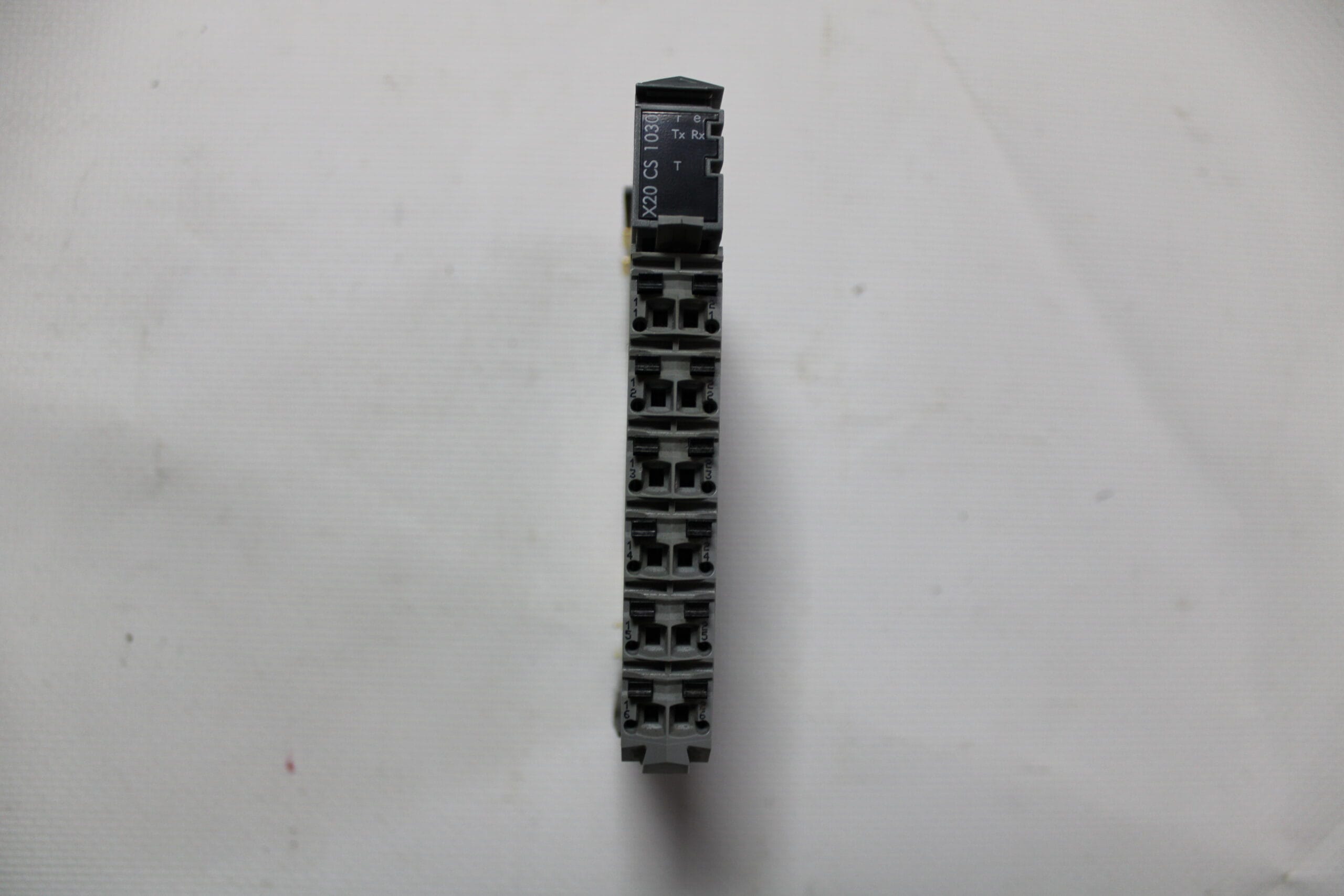

X20 CS 1030 – Automation Interface Module – B&R
- RS485/RS422 interface for serial, remote connection of complex devices to the X20 system
- Integrated terminating resistor
In addition to the standard I/O, complex devices often need to be connected. The X20CS communication modules are intended precisely for cases like this. As normal X20 electronics modules, they can be placed anywhere on the remote backplane.
X20 CS 1030 - Automation Interface Module - B&R
Short description
Communication module 1x RS485/RS422
General information
B&R ID code 0x1FD0
Status indicators Data transfer, terminating resistor, operating state, module status
Diagnostics
Module run/error Yes, using LED status indicator and software
Data transfer Yes, using LED status indicator
Terminating resistor Yes, using LED status indicator
Power consumption
Bus 0.01 W
Internal I/O 1.44 W
Additional power dissipation caused by actuators (resistive) [W] -
Certifications
CE Yes
UKCA Yes
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
UL cULus E115267
Industrial control equipment
HazLoc cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5
DNV Temperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)
LR ENV1
KR Yes
ABS Yes
BV EC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deck
EAC Yes
KC Yes
Interfaces
Interface IF1
Signal RS485/RS422
Variant Connection made using 12-pin terminal block X20TB12
Number of stations RS485: Maximum 32 stations
RS422: Maximum 10 stations (receivers)
Max. distance 1200 m
Transfer rate Max. 115.2 kbit/s
FIFO buffer 1 kB
Terminating resistor Integrated in module
Controller UART type 16C550 compatible
Electrical properties
Electrical isolation RS485/RS422 (IF1) isolated from bus and I/O power supply
Operating conditions
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Ambient conditions
Temperature
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating See section "Derating".
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Mechanical properties
Note Order 1x terminal block X20TB06 or X20TB12 separately.
Order 1x bus module X20BM11 separately.
Pitch 12.5+0.2mm
